One of the most often forgotten tasks required to bring the most of INAV, is good accelerometer calibration. Why? While flight controller software like Betaflight use accelerometer only to compute UAV’s body inclination (Angle and Horizon modes as well as artificial horizon), INAV uses it also for position estimation.

INAV not only has to know where bottom is. It also has to know where all other directions are, and how fast UAV is accelerating in those directions to be able to estimate its position. For this, advanced, or 6 point accelerometer calibration is required.

How to perform Accelerometer Calibration

During AAC, each side of flight controller has to be positioned “down” during calibration. Order is not important with one exception: during first step, top of flight controller has to positioned up. This is important: we are calibrating accelerometer, not whole UAV. Even is FC is mounted upside-down, during first step, FC has to to positioned upwards.

Prepare stable surface that will allow to keep FC stable in all required positions. Angles does not have to be super precise, even few degrees should be enough, but flight controller has to be motionless during calibration

1. Plug-in USB and connect to INAV Configurator

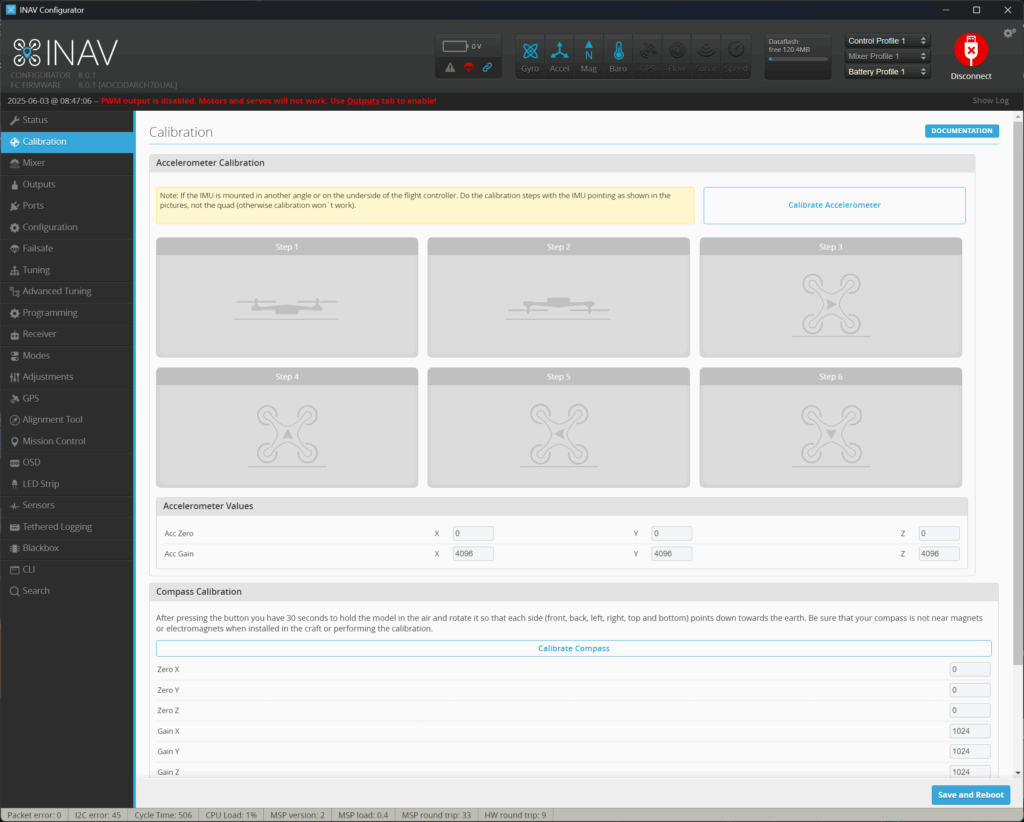

2. Click “Calibrate accelerometer” button

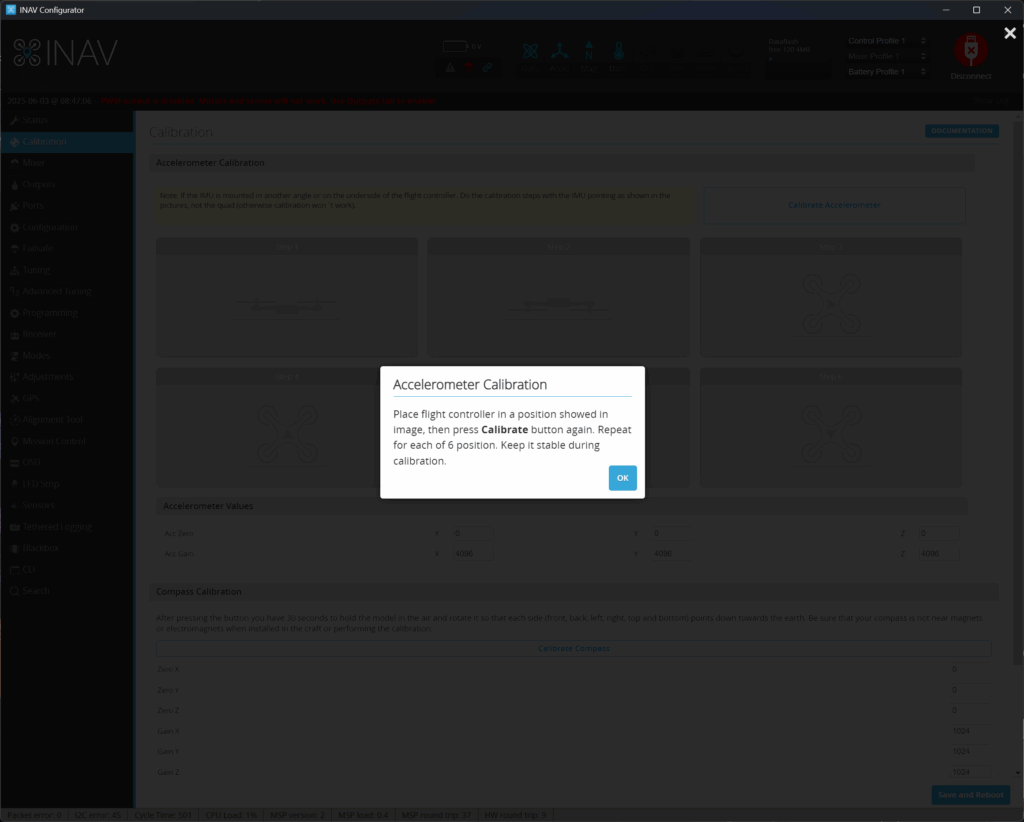

3. Read the message, understand it and hit “OK”

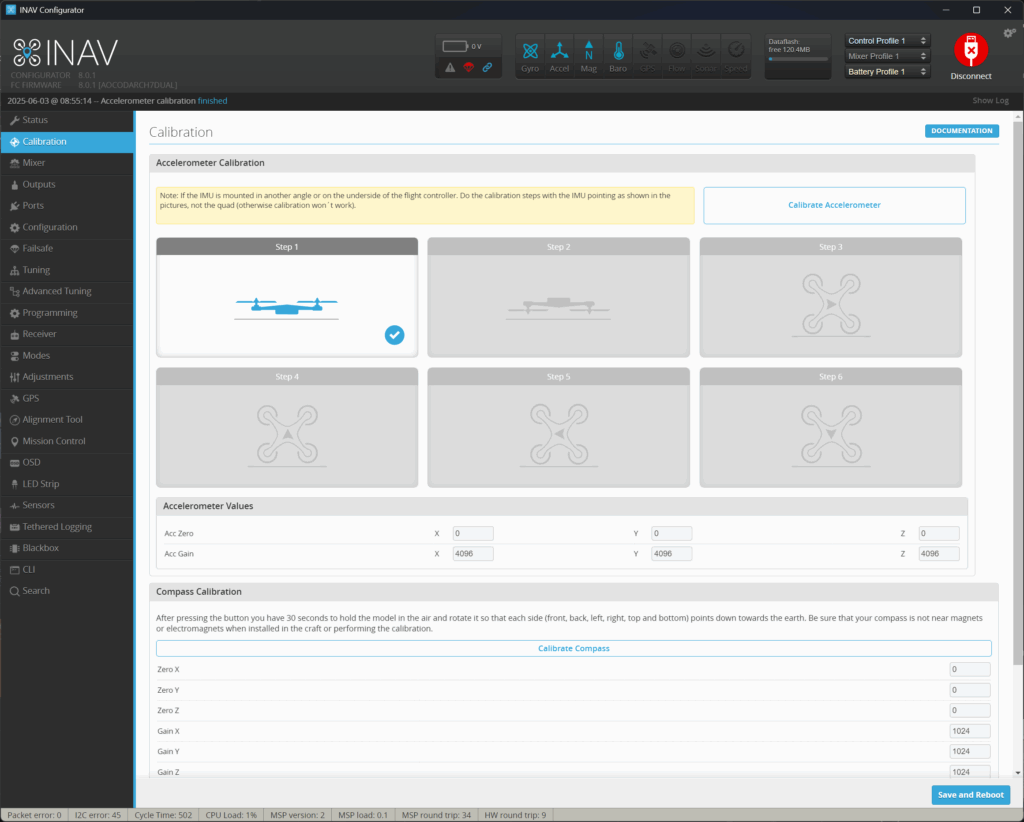

4. Position flight controller facing up and hit “Calibrate accelerometer” button. Wait for success message
5. Rotate FC 180 degrees so it is bottoms-up and hit “Calibrate acccelerometer” button. Wait for success message
6. Rotate FC so its rear edge is facing down and hit “Calibrate acccelerometer” button. Wait for success message
7. Rotate FC so its right edge is facing down and hit “Calibrate acccelerometer” button. Wait for success message
8. Rotate FC so its front edge is facing down and hit “Calibrate acccelerometer” button. Wait for success message
9. Rotate FC so its left edge is facing down and hit “Calibrate acccelerometer” button. Wait for success message
10. Disconnet and power down
11. Advanced accelerometer calibration is done. If is succeeded, acczero_x, acczero_y and acczero_z should different than 0, while accgain_x, accgain_y and accgain_z should be different than 4096

Worth remembering: calibration values can be restored via CLI when flight controller firmware is updated. It is hardware, not software dependent. Calibration should be executed when new hardware is used.
